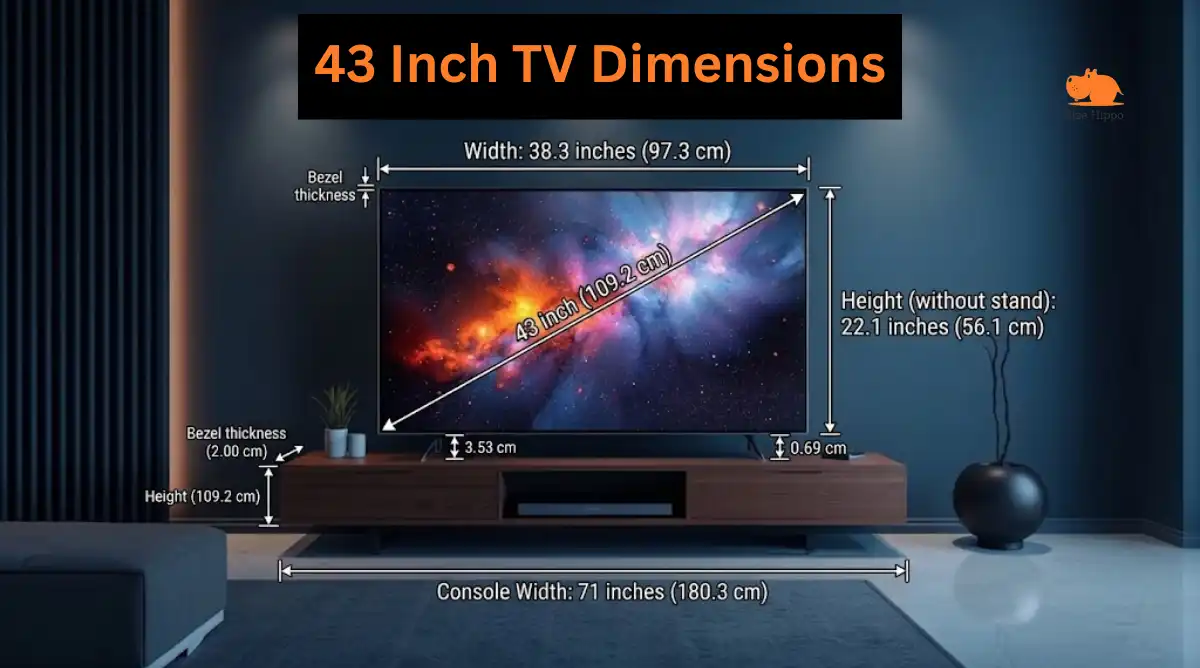

43 Inch TV Dimensions: Width, Height, Depth & Room Setup Guide
Finding the right TV size requires exact measurements. Selecting a 43 inch tv means balancing screen real estate with available wall or tabletop space. This comprehensive guide covers exact 43 inch tv dimensions, brand-specific specs, VESA mount patterns, box dimensions, and ideal viewing distances for USA homes.

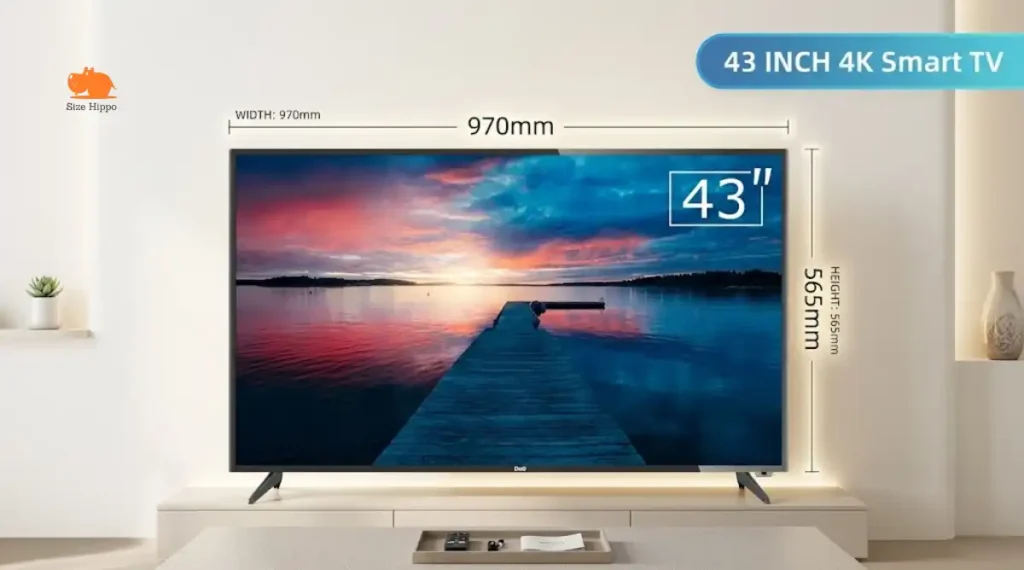

How Big Is a 43 Inch TV?
A 43 inch tv does not measure 43 inches across the screen from left to right. The 43-inch measurement represents the diagonal distance from one corner of the display area to the opposite corner.
Core Reference Metrics
- Overall Width: 37.5 inches to 38.2 inches (~95.3 cm to 97.0 cm)
- Height Without Stand: 21.1 inches to 22.5 inches (~53.6 cm to 57.2 cm)
- Height With Stand: 23.9 inches to 25.5 inches (~60.7 cm to 64.8 cm)
- Depth Without Stand: 2.1 inches to 3.2 inches (~5.3 cm to 8.1 cm)
- Depth With Stand: 7.5 inches to 10.0 inches (~19.0 cm to 25.4 cm)
- Average Weight: 14 lbs to 21 lbs (without stand) / 15 lbs to 23 lbs (with stand)

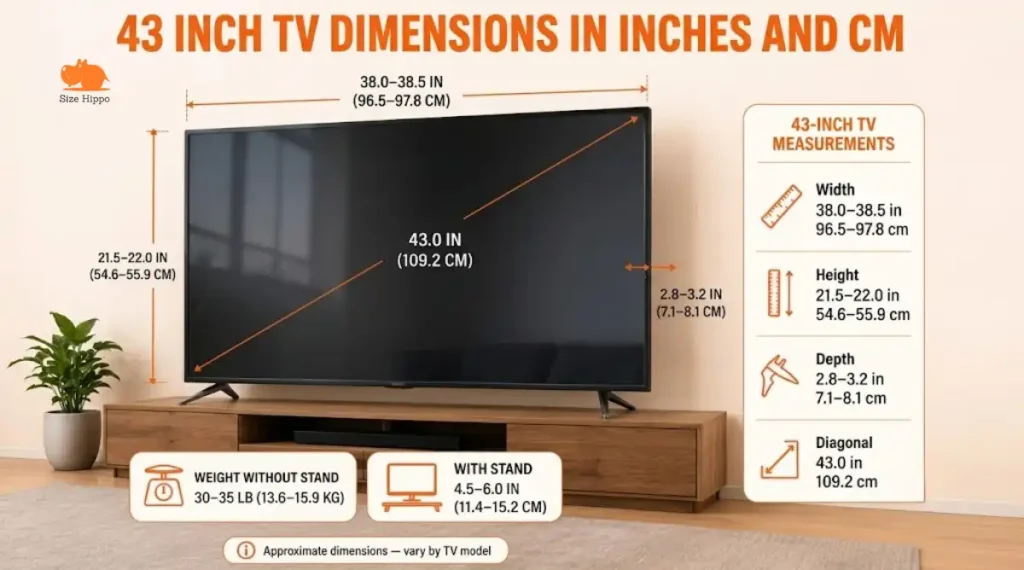

TV Dimensions in Inches & Centimeters
| Measurement Type | Imperial (Inches) | Metric (Centimeters) |
| Diagonal Screen Size | 43.0 in | 109.2 cm |
| Average Physical Width | 37.5 in – 38.2 in | 95.3 cm – 97.0 cm |
| Height (No Stand) | 21.1 in – 22.5 in | 53.6 cm – 57.2 cm |
| Height (With Stand) | 23.9 in – 25.5 in | 60.7 cm – 64.8 cm |
| Chassis Depth (No Stand) | 2.1 in – 3.2 in | 5.3 cm – 8.1 cm |
| Stand Depth (Footprint) | 7.5 in – 10.0 in | 19.0 cm – 25.4 cm |
| Display Area Surface | ~826.5 sq. in. | ~5,332 sq. cm. |

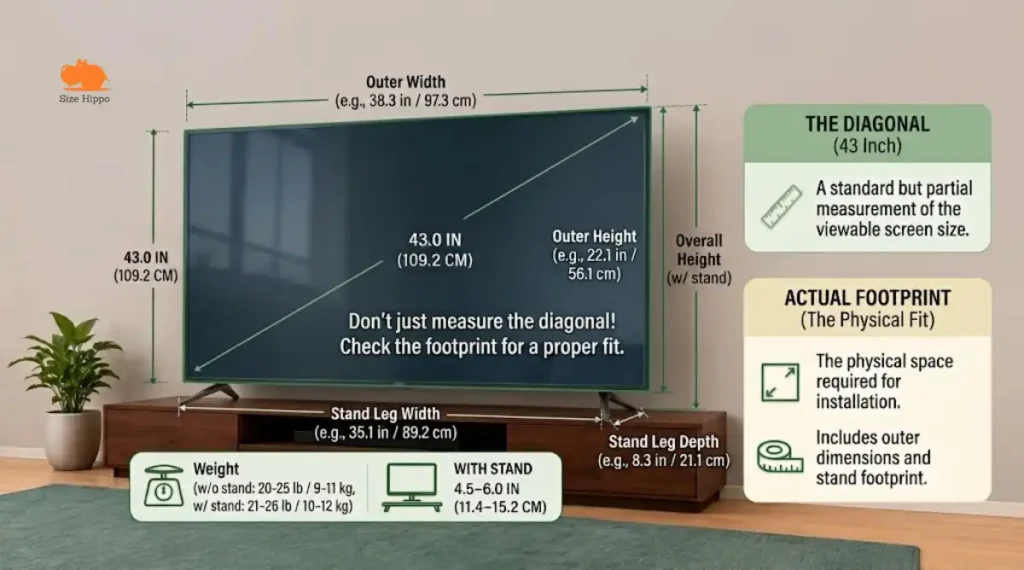

43 Inch TV Measurements: Diagonal vs. Actual Footprint
The 16:9 aspect ratio governs all modern high-definition and 4K UHD displays. This mathematical relationship determines physical screen proportions.
The Role of Bezels and Frames
The bezel size adds physical width and height to the display panel. Premium TVs feature ultra-thin bezels under 0.2 inches. Budget models feature thicker plastic frames up to 0.6 inches. These outer borders add up to 1 inch to the total physical width.
Panel Technologies and Chassis Depth
OLED panels and edge-lit LED displays maintain ultra-thin profiles under 2 inches. Direct-lit LED TVs require deeper backlighting cavities. These budget chassis designs increase the total chassis depth to 3.2 inches.
43 Inch TV Dimensions by Popular Brands
Each manufacturer uses distinct frame styles, chassis designs, and stand configurations. Compare specs across leading models sold in the USA.

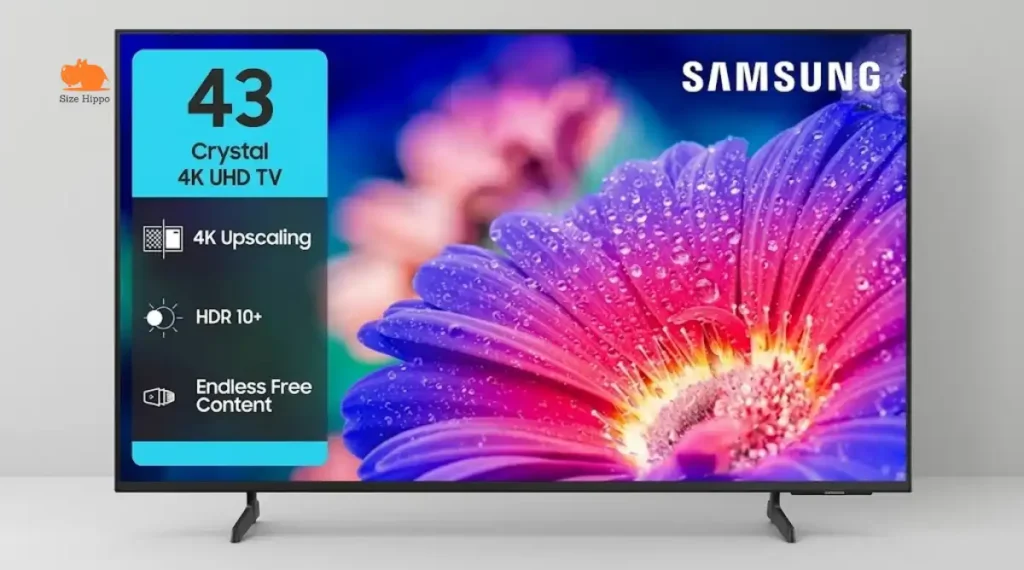

Samsung 43 Inch TVs
Samsung 43 inch models use slim bezel technology and narrow depth profiles. Models like The Frame mount flush against walls using specialized brackets.
- Average Width: 38.0 inches
- Height Without Stand: 22.0 inches
- Height With Stand: 24.2 inches
- Depth Without Stand: 1.0 inch (The Frame) to 2.2 inches (Crystal UHD)
- Stand Depth: 8.6 inches

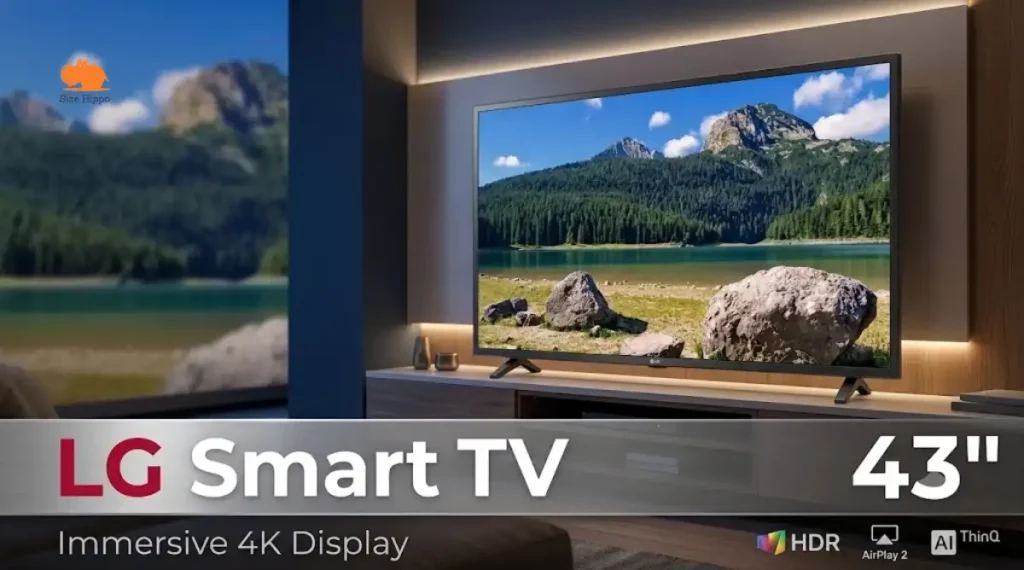

LG 43 Inch TVs
LG 43 inch TVs frequently feature quad-pod legs or centered pedestal stands. Their webOS displays incorporate thin top borders with slightly wider bottom bezels.
- Average Width: 37.3 inches
- Height Without Stand: 21.6 inches
- Height With Stand: 24.1 inches
- Depth Without Stand: 2.2 inches
- Stand Depth: 8.5 inches

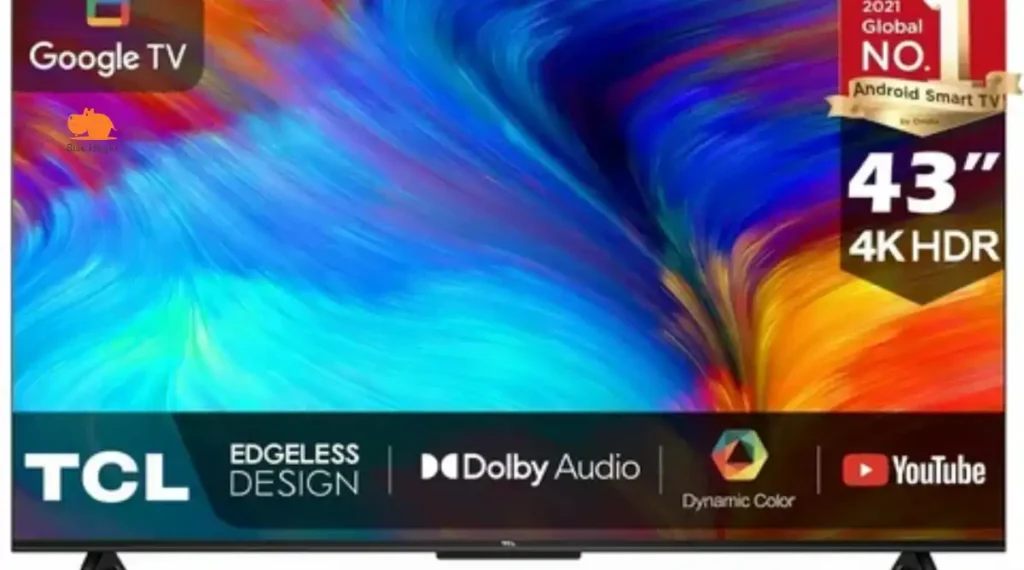

TCL 43 Inch TVs
TCL 43 inch smart TVs running Google TV or Roku TV OS offer direct-lit backlighting. Expect slightly deeper rear housings on these budget-friendly units.
- Average Width: 37.6 inches
- Height Without Stand: 21.4 inches
- Height With Stand: 23.8 inches
- Depth Without Stand: 3.0 inches
- Stand Depth: 7.8 inches

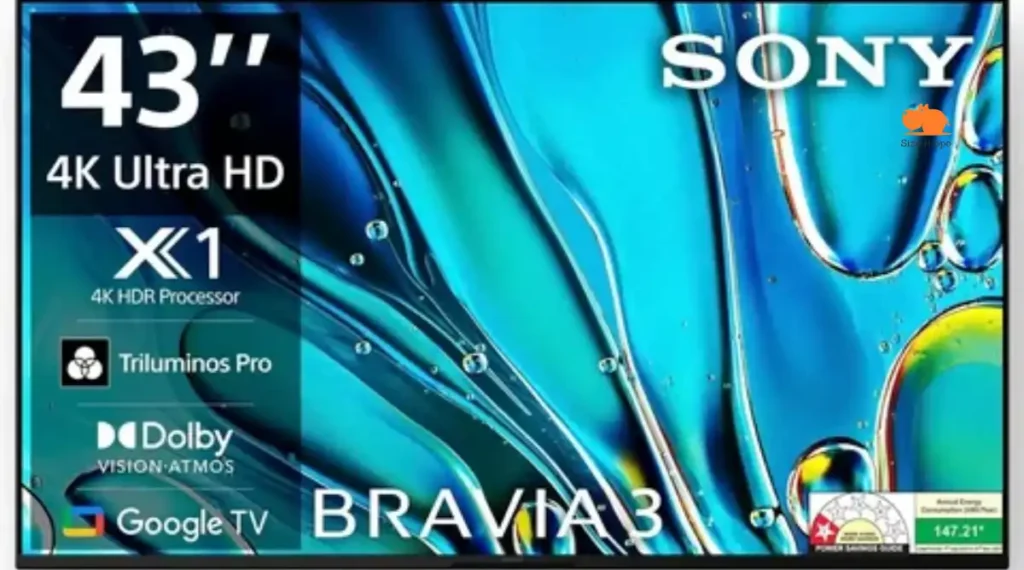

Sony 43 Inch TVs
Sony BRAVIA 43 inch series features premium audio drivers and full-array backlighting. Their frames measure slightly wider and taller than competitors.
- Average Width: 38.0 inches
- Height Without Stand: 22.1 inches
- Height With Stand: 24.8 inches
- Depth Without Stand: 2.8 inches
- Stand Depth: 11.3 inches
Popular 43 Inch TV Dimensions Comparison
| Brand & Model | Physical Width | Height (No Stand) | Height (With Stand) | Depth (No Stand) | Total Weight |
| Samsung Crystal CU7000 | 37.8 in | 22.0 in | 24.1 in | 2.3 in | 15.7 lbs |
| Samsung The Frame LS03B | 38.0 in | 22.0 in | 23.5 in | 1.0 in | 19.0 lbs |
| LG UT8000 Series | 37.3 in | 21.6 in | 24.0 in | 2.2 in | 16.3 lbs |
| TCL S450G (Google TV) | 37.6 in | 21.4 in | 23.8 in | 3.0 in | 14.8 lbs |
| Sony BRAVIA X80K | 38.0 in | 22.1 in | 24.8 in | 2.8 in | 21.8 lbs |
| Hisense A6 Series | 37.9 in | 21.9 in | 23.9 in | 2.9 in | 14.3 lbs |
| Vizio V-Series | 37.8 in | 21.8 in | 24.0 in | 2.6 in | 15.2 lbs |
43 Inch TV Box Dimensions & Car Transport
Transporting a 43-inch television requires knowing the total package dimensions. Shipping box sizes account for protective styrofoam caps and internal accessories.
Average Box Specs
- Box Length (Width): 41.5 inches to 44.0 inches
- Box Height: 25.5 inches to 28.0 inches
- Box Depth: 4.0 inches to 6.5 inches
- Gross Shipping Weight: 18.0 lbs to 26.0 lbs
Vehicle Fit Guide
- Sedan Back Seat: Fits easily across the rear passenger seats in standard mid-size sedans.
- Trunk Space: Fits into large sedan trunks with rear seats folded down.
- Hatchbacks & Crossovers: Fits effortlessly into compact hatchbacks, SUVs, and crossover cargo areas.
Transport Safety Warning: Keep the box upright during transit. Laying a flat panel display face-down can stress the glass substrate and cause internal panel cracks over rough roads.
Wall Mounting a 43 Inch TV
Wall mounting frees up surface space on media furniture. You must verify VESA mount compatibility and stud spacing before installation.
Standard VESA Hole Patterns
Most 43 inch televisions use a standard 200×200 mm VESA pattern (~8 inches by 8 inches) or a 200×100 mm VESA pattern. Use standard M6 mounting screws with a length of 12mm to 20mm depending on bracket thickness.
Eye-Level Height Formula
Position the vertical center of the screen at eye level when seated.
Mounting Height = Seated Eye Height (avg. 42 inches) – (TV Screen Height)/2
For a 43 inch TV with a 21.5-inch height, place the bottom edge of the display approximately 31 inches from the floor. This places the center point exactly 42 inches high.
Clearance and Recess Requirements
Leave a minimum of 2 inches of open air clearance on all four sides when placing a TV inside an enclosed entertainment center or wall recess. This clearance ensures proper heat dissipation and allows access to HDMI ports.
Choosing the Right TV Stand & Media Console Size
Selecting an undersized TV stand creates a top-heavy appearance and increases tipping risks. Follow visual design rules to select proper furniture.
The 4-to-6 Inch Margin Rule
Select a media console at least 4 to 6 inches wider than the TV chassis on both sides. Since a 43 inch TV measures ~38 inches wide, buy a console that measures at least 44 inches to 48 inches wide.
Stand Feet Distance vs. Center Pedestal
- Outer Feet Spacing: Dual-leg stands sit near the bottom corners of the chassis. They require a surface width of at least 32 to 36 inches.
- Center Pedestal Stands: Centered base stands rest on smaller surfaces as narrow as 20 inches wide.
Soundbar Clearance Height
Check the vertical distance between your tabletop and the bottom bezel. Most 43-inch TV stands offer 2.0 to 2.5 inches of clearance. Choose a low-profile soundbar under 2 inches tall to prevent blocking the IR remote sensor.
Ideal Viewing Distance for a 43-Inch Screen
Proper placement prevents eye strain and delivers ideal cinematic resolution. Recommended distances vary based on screen resolution.
4K UHD vs. Full HD (1080p) Distances
- 4K Ultra HD Resolution: Sit 4.5-5.5 feet (1.37-1.68 m) away.
- 1080p Full HD Resolution: Sit 5.5 feet to 7.0 feet away (1.68 m to 2.13 m).
Field of View Standards
- SMPTE Standard: Recommends a 30-degree field of view for general media consumption.
- THX Standard: Recommends a 40-degree field of view for immersive movie viewing.
Best Rooms for a 43 Inch Display
A 43 inch television fits small to medium spaces. Ideal placement locations include:
- Bedrooms and guest rooms
- College dorm rooms
- Home offices and gaming rooms
- Apartment living rooms under 150 square feet
43-Inch vs. 32-Inch vs. 50-Inch TVs
Understanding screen surface area helps you decide whether to step up or down in size.
Display Surface Area Math
- 32 Inch TV: Yields ~428 square inches of viewing space.
- 43 Inch TV: Yields ~826 square inches of viewing space (93% larger than 32″).
- 50 Inch TV: Yields ~1,116 square inches of viewing space (35% larger than 43″)
TV Screen Size Comparison
| Screen Size | Average Width | Height (No Stand) | Total Surface Area | Recommended Room Size |
| 32-Inch | 28.0 in | 16.0 in | ~428 sq. in. | Kitchens, Dorms, Bathrooms |
| 43-Inch | 37.8 in | 21.5 in | ~826 sq. in. | Bedrooms, Offices, Small Living Rooms |
| 50-Inch | 44.0 in | 25.0 in | ~1,116 sq. in. | Medium Living Rooms, Den Spaces |
| 55-Inch | 48.5 in | 27.5 in | ~1,293 sq. in. | Standard Living Rooms, Home Theaters |
Quick Summary & Key Takeaways
At a Glance: 43 Inch TV Sizing Essentials
- Actual Width: ~37.8 inches (Fits easily on consoles 44 inches or wider)
- Actual Height: ~21.5 inches without stand | ~24 inches with stand
- Ideal Viewing Distance: 4.5 to 5.5 feet for 4K UHD resolution
- Wall Mount Standard: VESA 200×200 mm (M6 screws)
- Best Room Placement: Bedrooms, home offices, dorms, and small living rooms (<150 sq. ft.)
- Always Measure the Frame Width, Not Just Diagonal: A 43 inch TV measures 43 inches diagonally from corner to corner. The actual horizontal width ranges from 37.3 to 38.0 inches depending on bezel thickness.
- Account for the Stand Footprint: Legs can add 2 to 3 inches in height and require a table depth of at least 8 to 10 inches. Verify the leg spacing distance if using existing furniture.
- Leave Room for Airflow and Cables: Allow at least 2 inches of clearance around all sides if placing the TV inside a cabinet recess or entertainment center.
- Mount at Eye Level: Position the center of the screen approximately 42 inches from the floor when seated for maximum viewing comfort and reduced neck strain.
Also read 98 Inch TV Dimensions: Full Size Guide (2026)
Conclusion
Choosing the right 43 inch TV comes down to balancing physical space with optimal viewing comfort. With a standard width of roughly 37.8 inches and a height around 21.5 inches (without a stand), a 43 inch display strikes an ideal sweet spot, offering nearly double the screen area of a 32-inch model without dominating your room like a 55-inch set.
Whether you plan to wall-mount your TV using a 200×200 VESA bracket or place it on a media console, always remember to factor in stand footprint, bezel thickness, and cable clearance.
By setting your viewing distance between 4.5 and 5.5 feet, you will enjoy crisp 4K picture quality and an immersive viewing experience tailored perfectly to your space.
Frequently Asked Questions (FAQs)
Can a 43-inch TV fit inside a 38-inch cabinet opening?
It depends on the exact model bezel thickness. Most 43 inch TVs measure between 37.3 and 38.0 inches wide. A 38-inch opening leaves zero room for airflow or side access. Select a cabinet opening at least 40 inches wide instead.
How heavy is a 43 inch TV without a stand?
Modern 43 inch 4K TVs weigh between 14 lbs and 21 lbs without a stand. Older LED models or full-array back-lit sets weigh slightly more.
What size wall mount bracket do I need for a 43 inch TV?
Buy a small-to-medium TV wall mount rated for 32″ to 55″ displays. Ensure the mount supports a 200×200 mm VESA hole pattern and holds at least 30 lbs.
How wide is the shipping box for a 43 inch TV?
A 43 inch TV box measures 41.5 to 44 inches wide, 25.5 to 28 inches tall, and 5 to 6.5 inches deep.
